About Shin-Etsu KE-40RTV
Overview

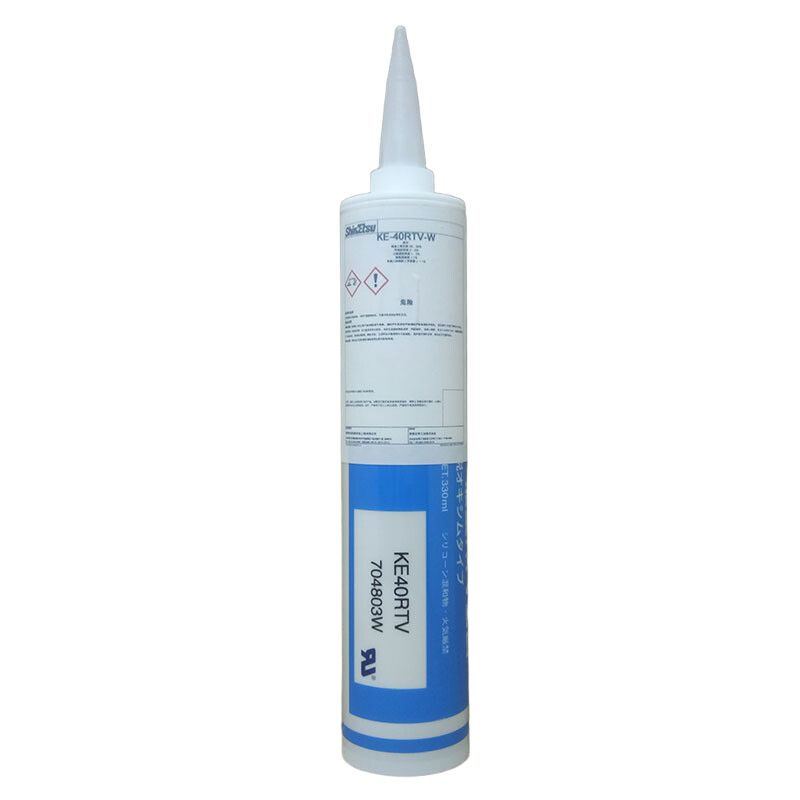

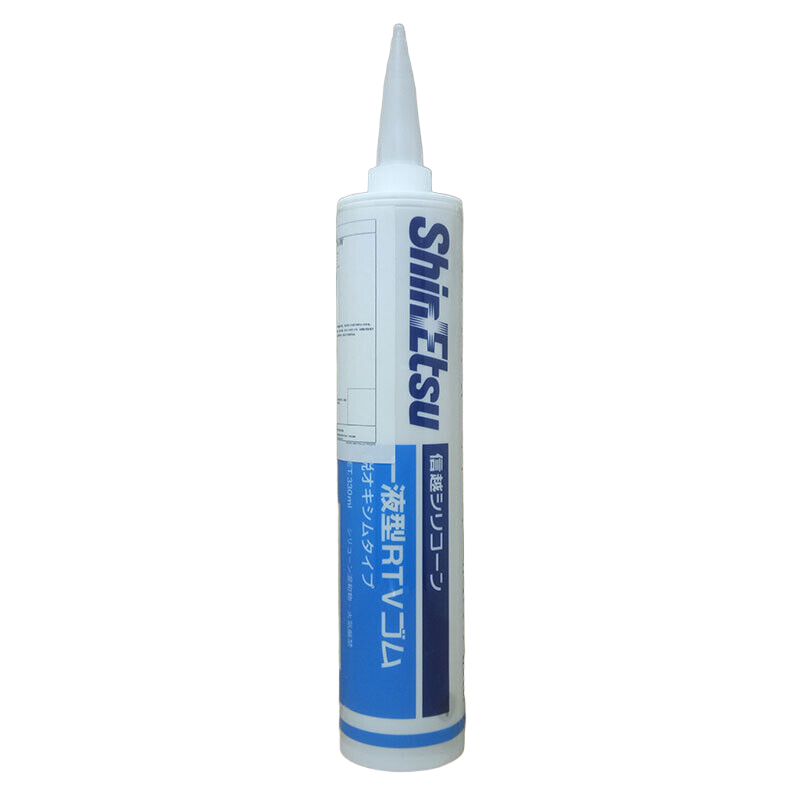

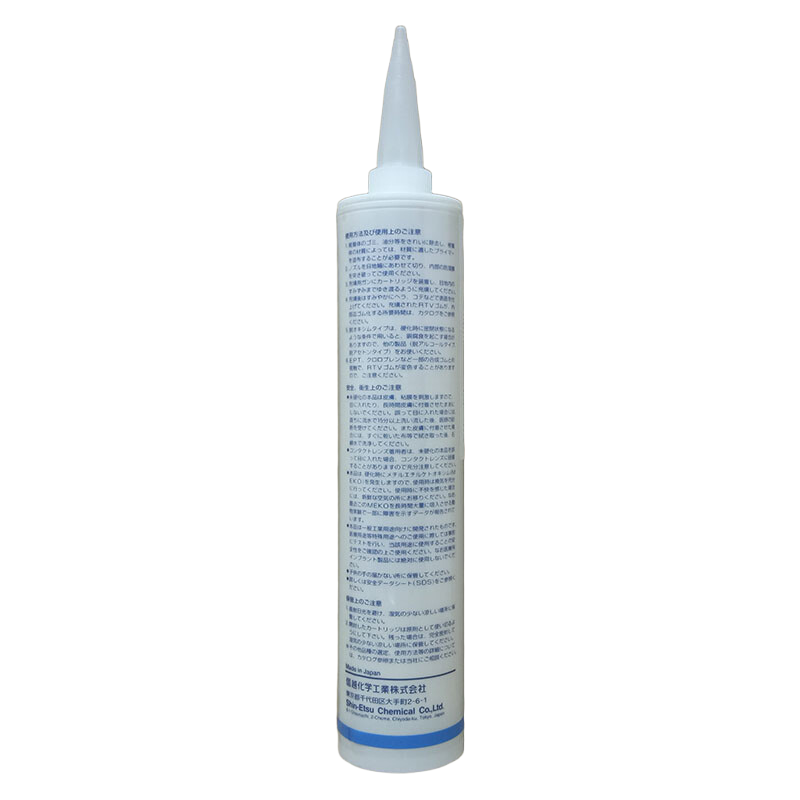

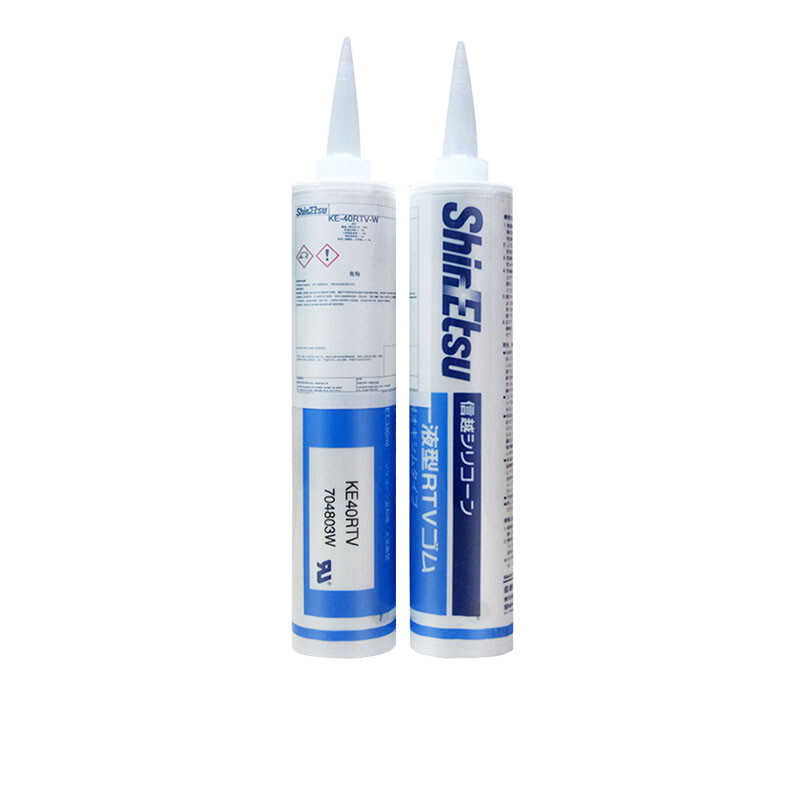

Shin-Etsu KE-40RTV is a one-component, room-temperature vulcanizing (RTV) silicone adhesive/sealant. It cures upon exposure to atmospheric moisture, forming a durable, flexible elastomer
-
Cure Type: Condensation (neutral oxime)
-
Appearance: Gray or white thixotropic paste
-
Density: 1.58 g/cm³ at 23 °C
-
Tack-Free Time: Approximately 12 minutes at 23 °C, 50% RH
-
Cure Conditions: 7 days at 23 °C, 50% RH
-
Hardness: Shore A 60
-
Tensile Strength: 2.90 MPa
-
Elongation at Break: 200%
-
Shear Strength: 1.00 MPa
-
Thermal Conductivity: 0.42 W/m·K
-
Dielectric Strength: 25 kV/mm
-
Dielectric Constant: 3.9 at 50 Hz
-
Dissipation Factor: 0.01 at 50 Hz
-
Volume Resistivity: 1 TΩ·m
-
Operating Temperature Range: -40 °C to +180 °C
-
UL Rating: 94 V-0 flame retardant
Key Features
-
Neutral Cure: Non-corrosive to metals and sensitive substrates.
-
Low Odor: Suitable for enclosed environments.
-
Excellent Adhesion: Bonds well to metals, plastics, glass, and ceramics without primers.
-
Electrical Insulation: High dielectric strength and volume resistivity.
-
Flame Retardant: Meets UL 94 V-0 standards.
-
Weather Resistance: Resistant to UV, ozone, and moisture.
Typical Applications
-
Electronics Sealing: Protects components from moisture and contaminants.
-
Form-in-Place Gaskets: Replaces traditional gaskets in assemblies.
-
Adhesive Bonding: Joins dissimilar materials in various assemblies.
-
Thermal Management: Assists in dissipating heat in electronic devices.
Usage Guidelines
-
Surface Preparation: Clean surfaces to remove oils, dust, and contaminants.
-
Application: Apply directly from the container using appropriate dispensing equipment.
-
Curing: Allow to cure at room temperature; full cure achieved in 7 days at 23 °C, 50% RH.
Safety & Handling
-
Storage: Store in a cool, dry place away from direct sunlight.
-
Handling: Use in well-ventilated areas; avoid contact with skin and eyes.
-
Disposal: Dispose of in accordance with local regulations.
